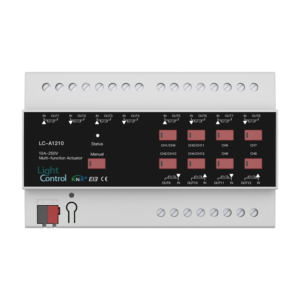

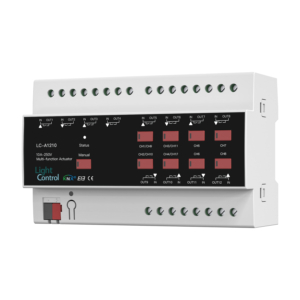

LC-A1210
12 Chanel’s multi function Actuator
- 10A KNX Combo is a modular installation device, which is a multi-channel
output module and integrates a variety of output functions. Connect to the
EIB / KNX system through the EIB bus terminal block, and use the engineering
design tool software ETS software (version ETS4.0 or above) to assign
physical addresses and set parameters.
The maximum load current output by the combo actuator is 10A. One relay in
the device represents one output, a total of 24 outputs. Some functions may
require multiple outputs. For example, one curtain AC output requires two
relay outputs, one relay is used to control the forward rotation, one is used to
control the reverse rotation, and the ordinary switch output needs to occupy
one relay output. Therefore, in the process of engineering application, select
products according to actual needs. - Data Sheet
- Input voltage: 230 V ac, 50/60 Hz
- Power supply: KNX bus, 29 V dc SELV
- Consumption on bus: 12 mA
- Rated current IN: 10 A
- Operating Temperature: -5 ÷ +45 °C (internal use)
- Connection to the BUS: coupling terminal, 2 pins, d=0,8 mm
- Electric connections: screw terminals, max. cable section 5 mm2 (AWG10)
- Degree of protection: IP 20
- Dimensions: 8 DIN modules
KNX functions
- Switching function
- roller shutters and venetian blinds
- Staircase light function
- Scenario function
- Logical functions: 16 generic logical operators are available to be assigned to the desired channels without restrictions
- Channel status feedback
- Thermostatic valve control with PWM algorithm and fancoil devices
- 4 Input for dry contact
