LC-PBNFC8
8/4 -channel push button interface
(1) Supports NFC and ETS to configure button label content;
(2) Switch function, which can be used to turn on/off lighting,
with long press, short press and inversion functions;
(3) Dimming function, which controls dimming devices, with
relative dimming and absolute dimming functions;
(4) Curtain control function, which can control open & close
curtains, the raising and lowering of projection screens, etc.;
(5) Value sending, which can send 1bit/1byte values;
(6) Scene control function, which can perform 8bit scene
control and call the set scene number;
(7) Shift register, sends values in the form of shift register;
(8) RGB & RGBW control, which can be controlled by long
press or short press;
(9) Multiple operation function, which can send different values
at the same time and call different types of functions in one
operation;
(10) Delayed value sending, which sends a value or does not
send it during operation, and sends another value after a delay;

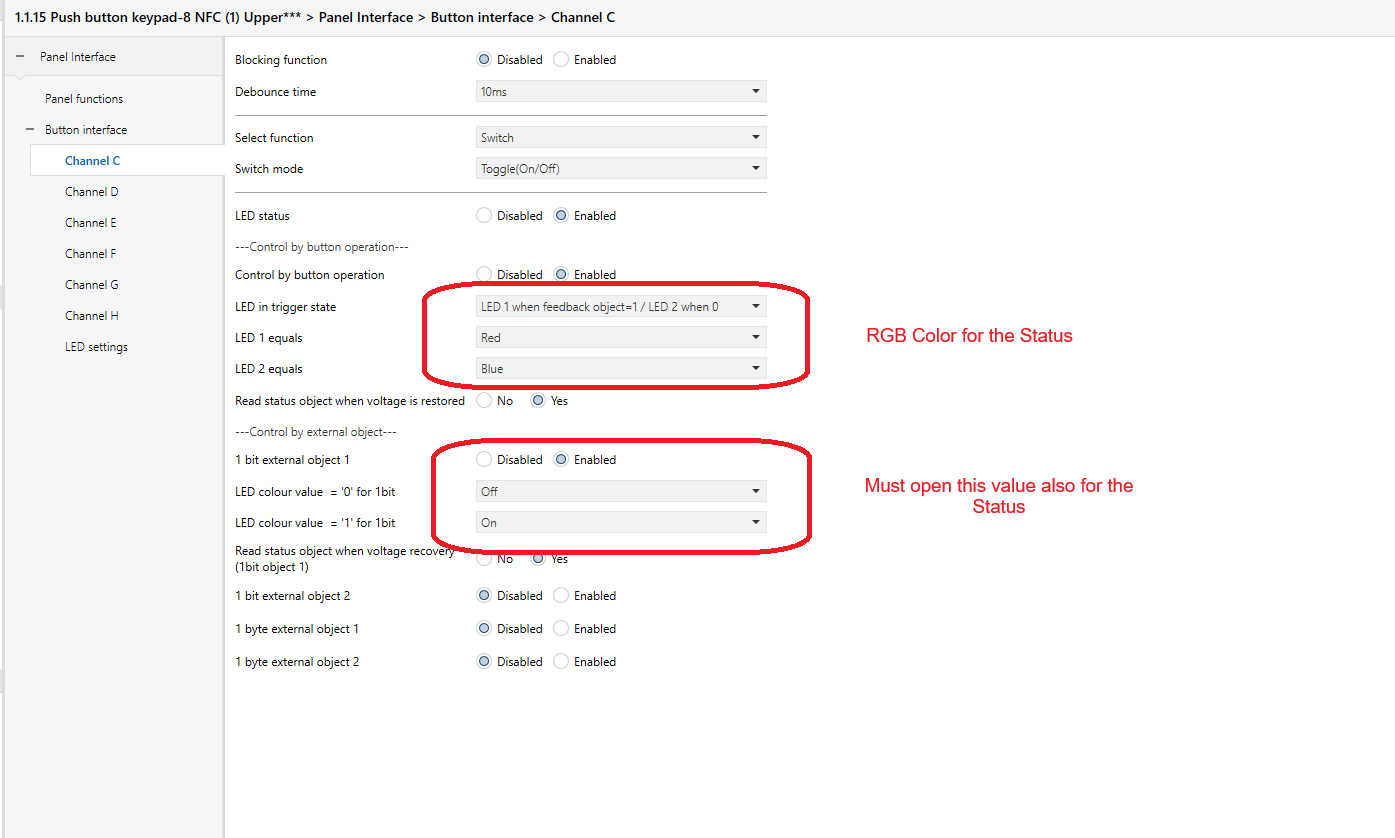

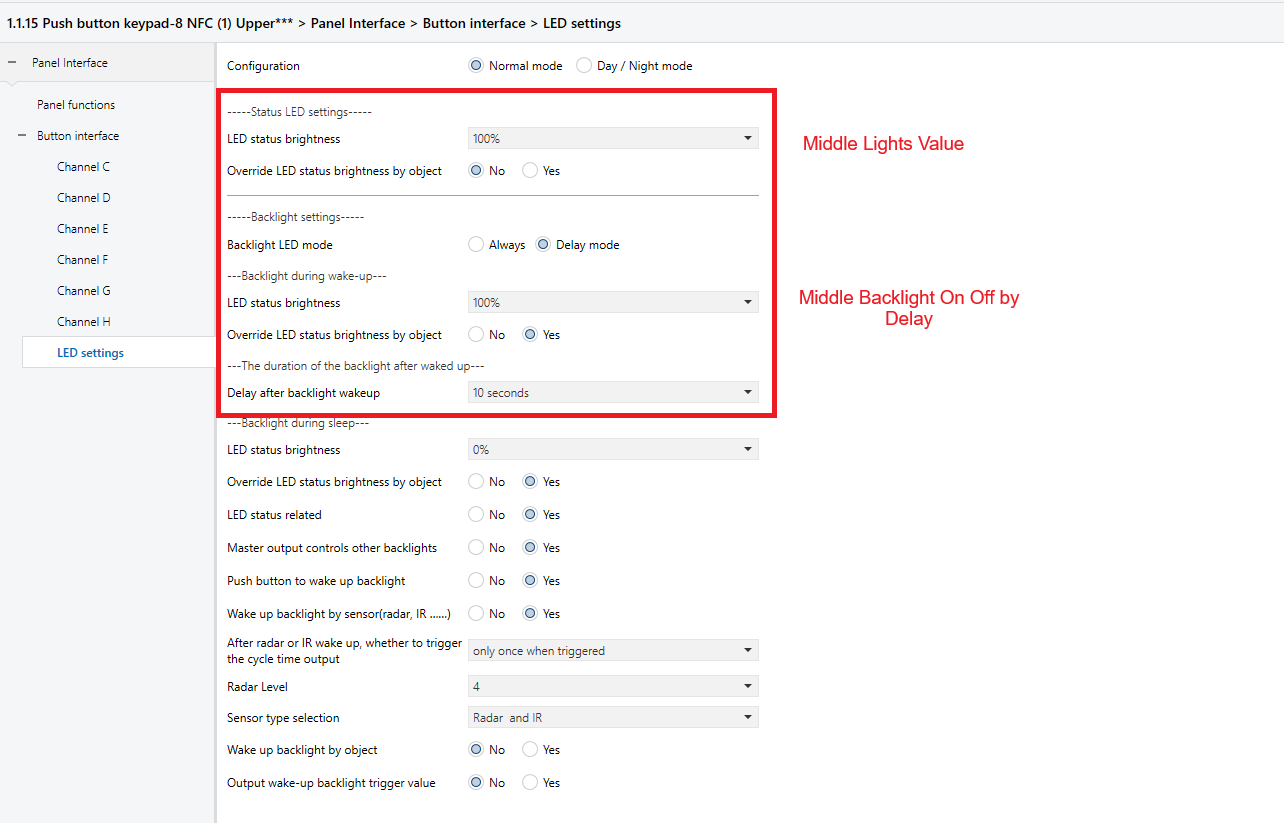

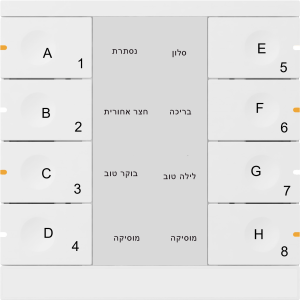

The leters and numbers this are the way in the ETS File to program the NFC push buttons
