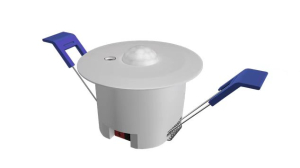

LC-MAXIMD005
Brighteness & Motion Sensor
Function
(1) Illuminance value cycle output
(2) 2-way control luminance channel, output 1bit, 4 bit, 1byte data
(3) Infrared motion trigger control
(4) Infrared motion and brightness logic

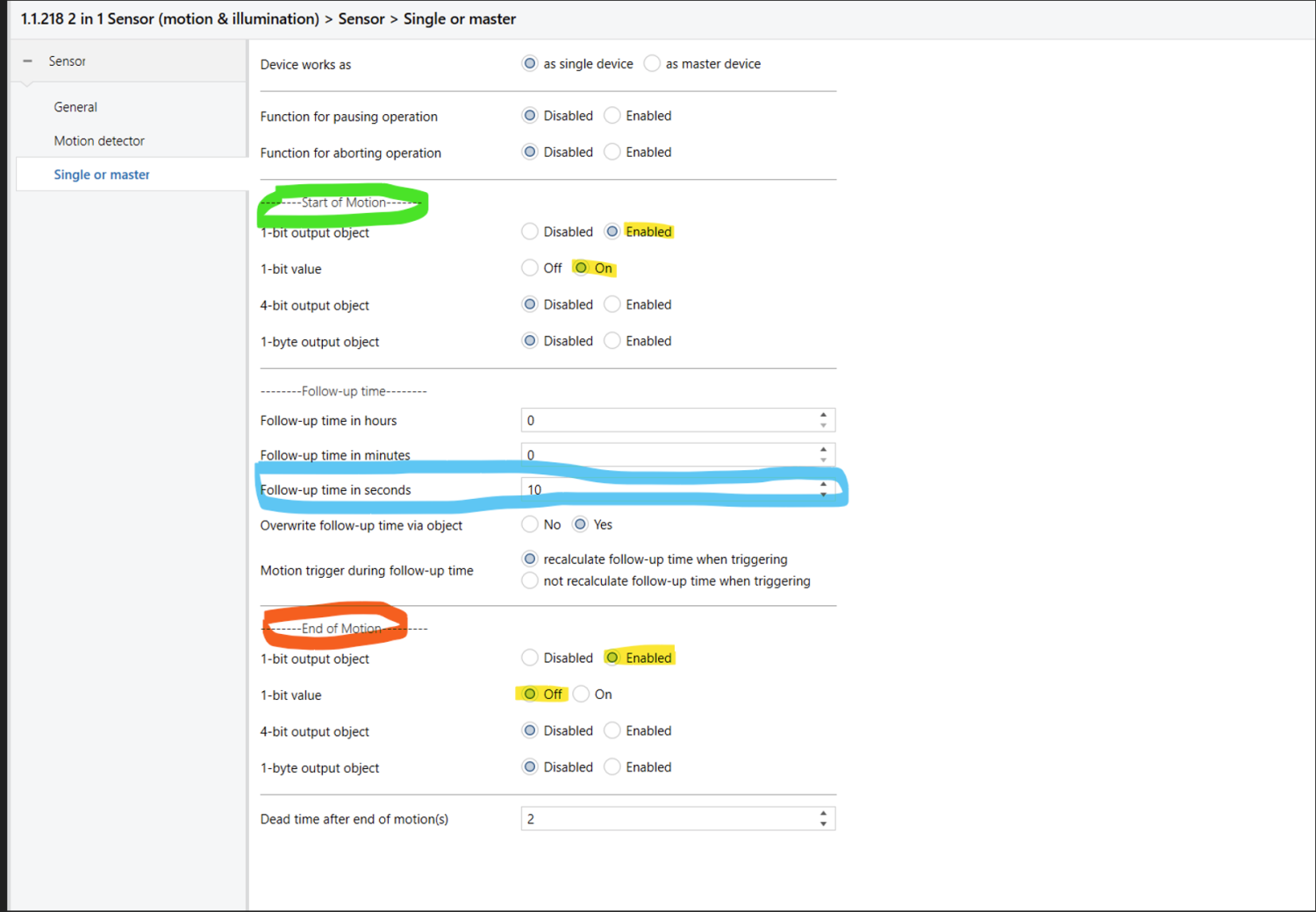

(5) Infrared motion Master-Slave
(6) The output control function of illumination and infrared movement is enabled or disabled by the
object
(7) The combination of illumination & movement controls the function of the light
(8) Infrared motion, illumination
Parameters
Bus input 21-30V DC, bus power supply Bus current ≤12mA
Bus power ≤360mW

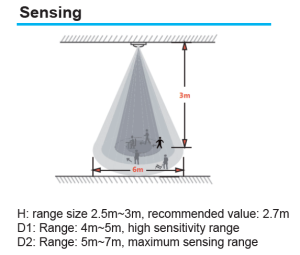

Sensing distance H 2.5m~3.5m Radiation range:≥10m
Material ABS
Dimension H 76mm, D 76mm Hole Installtion 62-72mm Installtion Embedded
installation Weight About 0.05KGS
Operating temperature -5°C- 45°C
Storage temperature – 20°C- 70°C Relative humidity Max 90%
