LC-MINIMD004

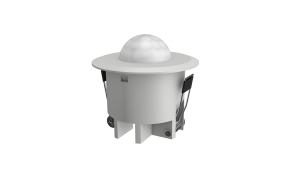

Mini Motion Sensor


Mini Motion Sensor

Functions
(1) Infrared motion trigger control function
(2) Infrared motion Master-Slave function
(3) Enable or disable the infrared channel control output function through the object Parameters
Parameters
Bus input 21-30V DC, bus power supply Bus current ≤12mA
Bus power ≤360mW

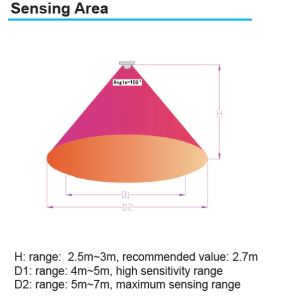

Sensing distance H 2.5m~3.5m Radiation range:5-7m
Material ABS
Dimension H 40.1mm, D 39.8mm Installation Hole 31mm
Installtion Embedded installation Weight About 0.05KGS Operating temperature
-5°C- 45°C
Storage temperature – 20°C- 70°C Relative humidity Max 90%
