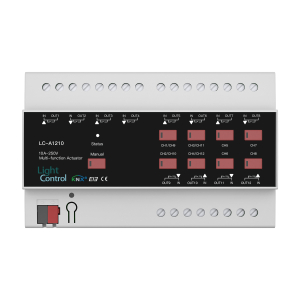

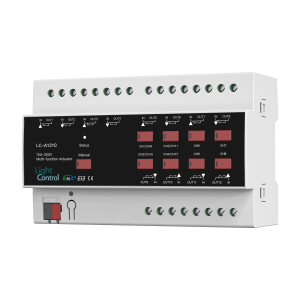

• The LC-A1210 12 is a 12-channel DIN-rail-mounted multifunctional actuator for independent switching of loads by means of closing contacts. The 230 V ac switching output can be controlled by the push buttons on the front.
  A green LED indicates the status of the channel.

  It features 16 A bistable relays with contacts connected directly to the terminals, without phase sharing.
  The screw terminals can accept cable sections up to 5 mm2. The relays used can withstand an inrush current of up to 320 A in the first 2 ms, making them particularly suitable for controlling inductive loads such as fluorescent or neon lamps.

Data Sheet

• Input voltage: 230 V ac, 50/60 Hz
• Power supply: KNX bus, 29 V dc SELV
• Consumption on bus: 12 mA
• Rated current IN: 10 A
• Operating Temperature: -5 ÷ +45 °C (internal use)
• Connection to the BUS: coupling terminal, 2 pins, d=0,8 mm
• Electric connections: screw terminals, max. cable section 5 mm2 (AWG10)
• Degree of protection: IP 20
• Dimensions: 8 DIN modules

KNX functions

• Switching function
• Staircase light function
• Scenario function
• Logical functions: 16 generic logical operators are available to be assigned to the desired channels without restrictions
• Channel status feedback
• Checking roller shutters and venetian blinds
• Thermostatic valve control with PWM algorithm and fancoil devices
