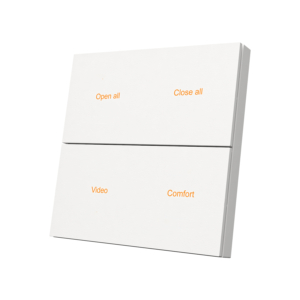

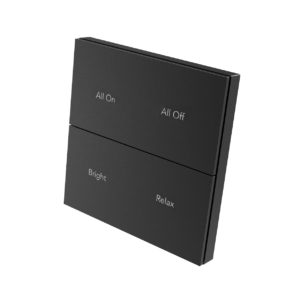

LC-PBS4R
4/2 Plastics Key Push Buttons
- High end Plastic KNX push button
- Labeling cover can be customized with laser engraving
- Labeling cover area with back lighting design, easy to find in dark
- Extensive Operating Functions
- Configurable Bi colored LED Indicator for Each Button
- Commission and Project Design with ETS4 / 5
- Switching and Dimming Function
- Scene Recall and Storage Function
- Roller Blinds and Shutter Function
- 2 Out put for dry contact
- Push Buttons can be adjusted for 1 or 2 button operation
- Powered by KNX Bus Power Supply, No Extra Power Supply Required
- Easy installation with a mounting bracket
Data Sheet
- Number of Rockers Number of – 4
- bi colored LED – 4
- KNX bus connection terminal – KNX BUS
- Power Consumption KNX bus type – <0.3W
- Operation temperature range – 0 To 45c
- Dimensions(W x H x D) – 85/85/26.6 mm
