LC-LK001-KNX
KNX Line Coupler
Data Sheet

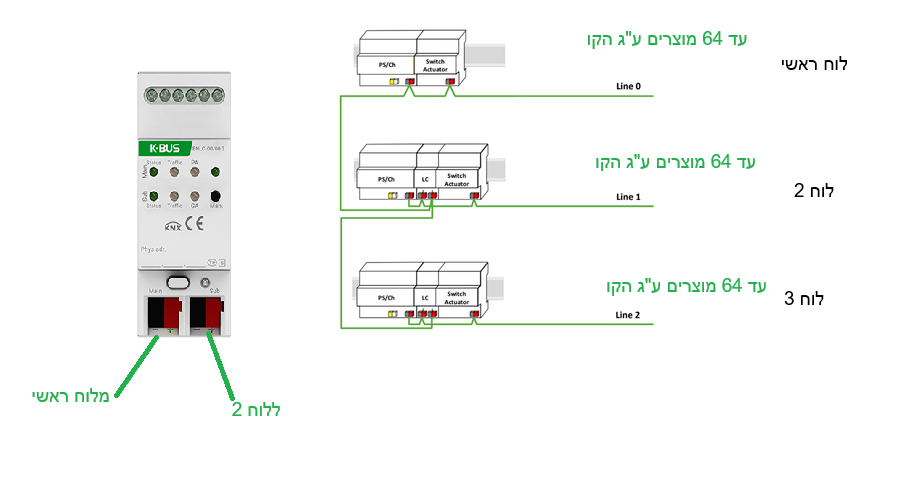

The coupler can be used as line coupler, backbone coupler or repeater as well in existing KNX networks as in new KNX networks. It has a filter table with the help of which bus telegrams are either blocked off from one of the two lines or are passed on to another line thus reducing the bus load. The filter table is created by the ETS (KNX Tool Software) automatically on commissioning the system.
Power Supply
- Bus Main line
- 21-30V DC, used for power supply of the device
- Bus Sub line 21-30V DC
Connections
- KNX Main/Sub line
- Left bus connection terminal(Red/Black)
